GP Drawing Desk documentation

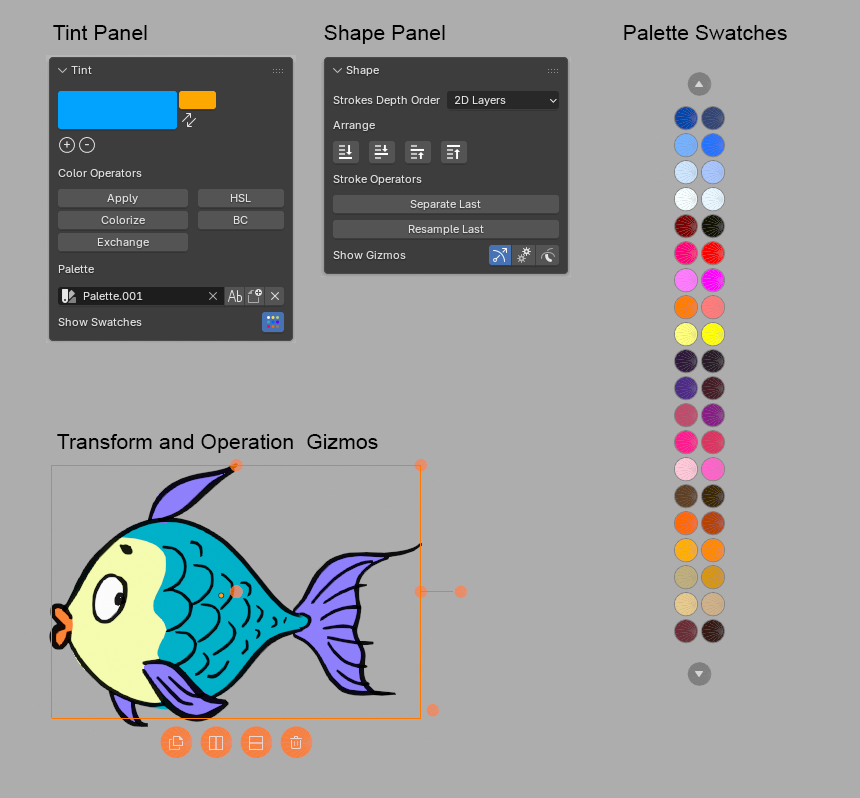

Panels and additionals Gizmos which comes with addon

Tint panel

Brush Color

Color operators

Select strokes and change its color using different operators.

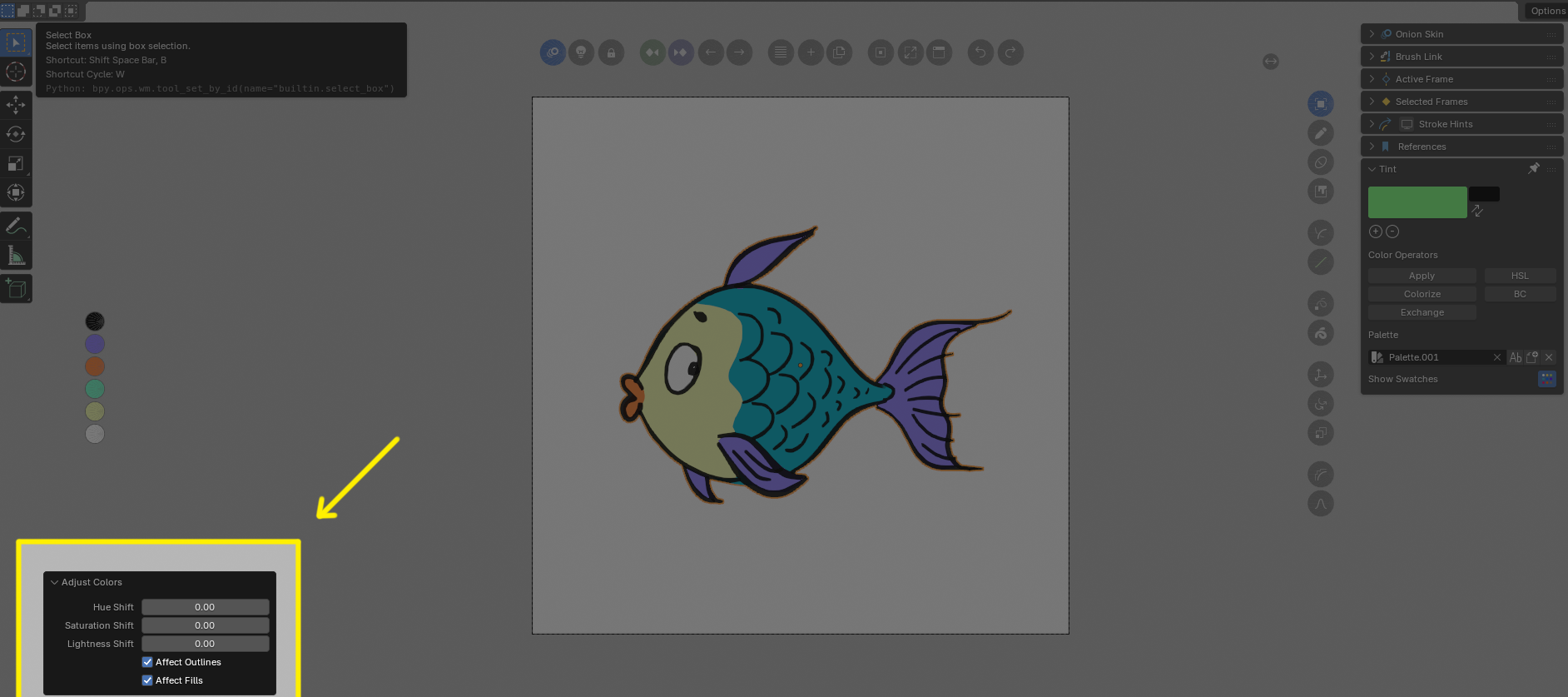

After executing operator you will find its options (working live) in the Adjust Last Operation panel in the left bottom corner of 3d View.

Apply

Applies current brush color onto selected strokes. If you Apply color without any key pressed it applies to fills and outlines If you want to apply color to fills only use CONTROL key modifier. If you want to apply color to outlines only use SHIFT key modifier.

Colorize

Apply color, keeping lightness of drawing

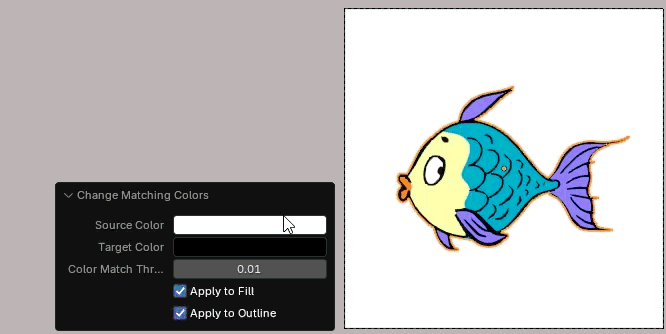

Exchange

Exchanges source color to target color

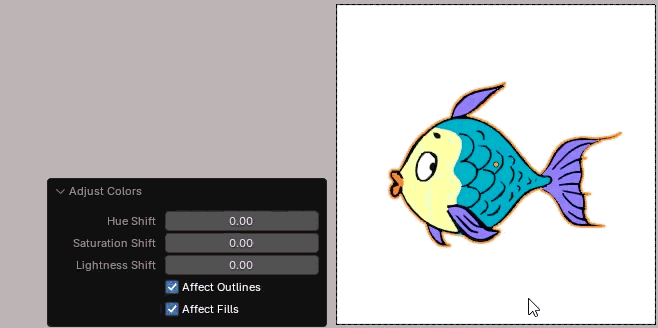

HSL

Hue / Saturation / Lightness sliders

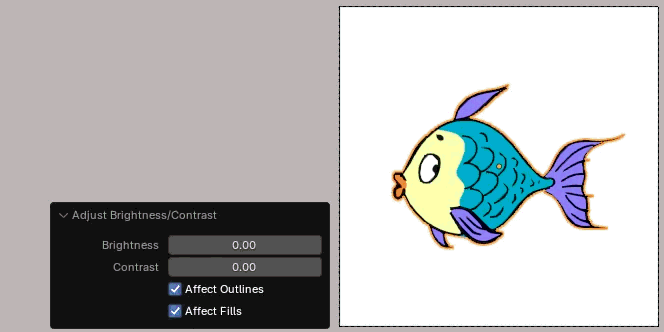

BC

Brightness / Contrast sliders

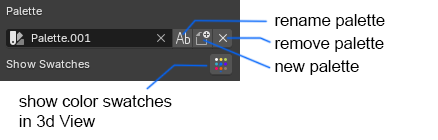

Palette options

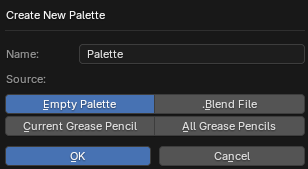

Create New Palette popup window

You can create: - new empty palette - palette based on visible grease pencil image - import any palette from other .blend file

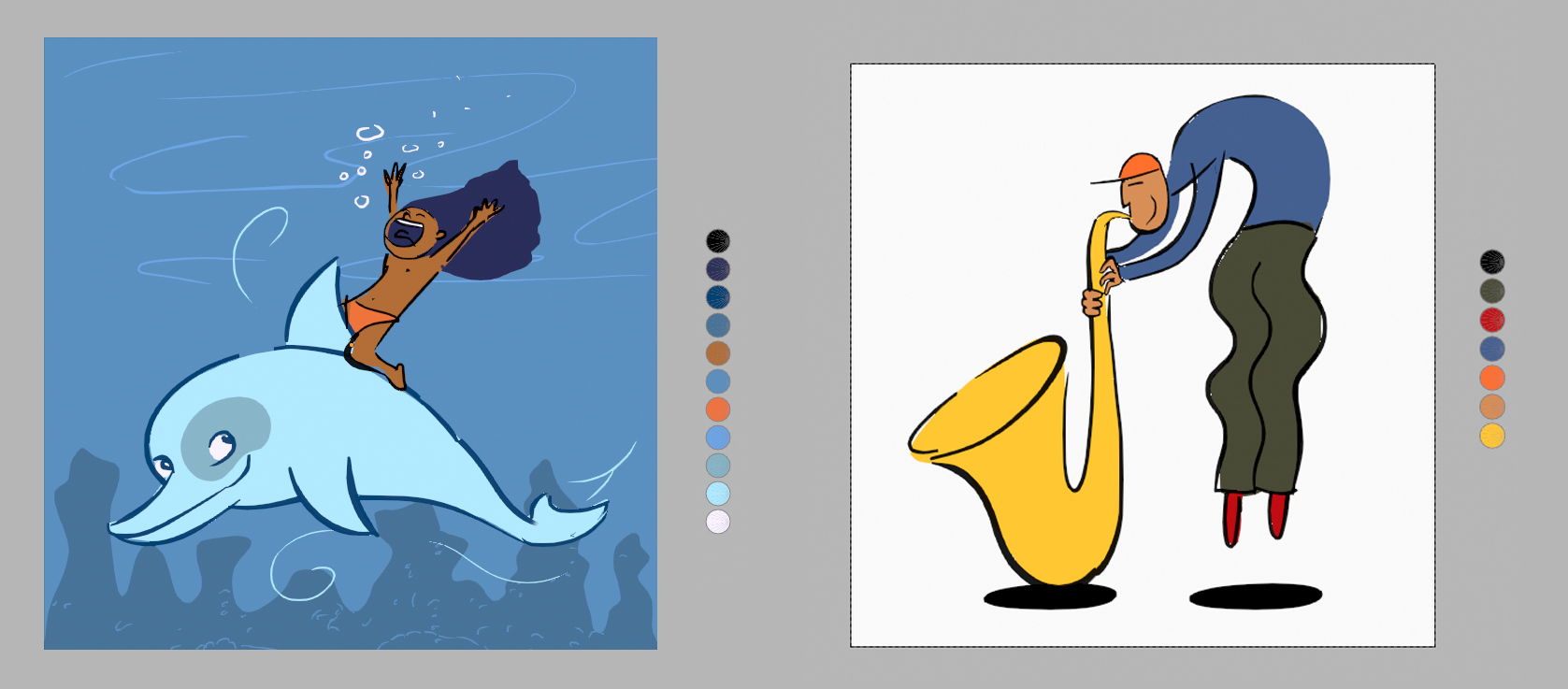

Example of palettes generated by Create New Palette -> Current Grease Pencil:

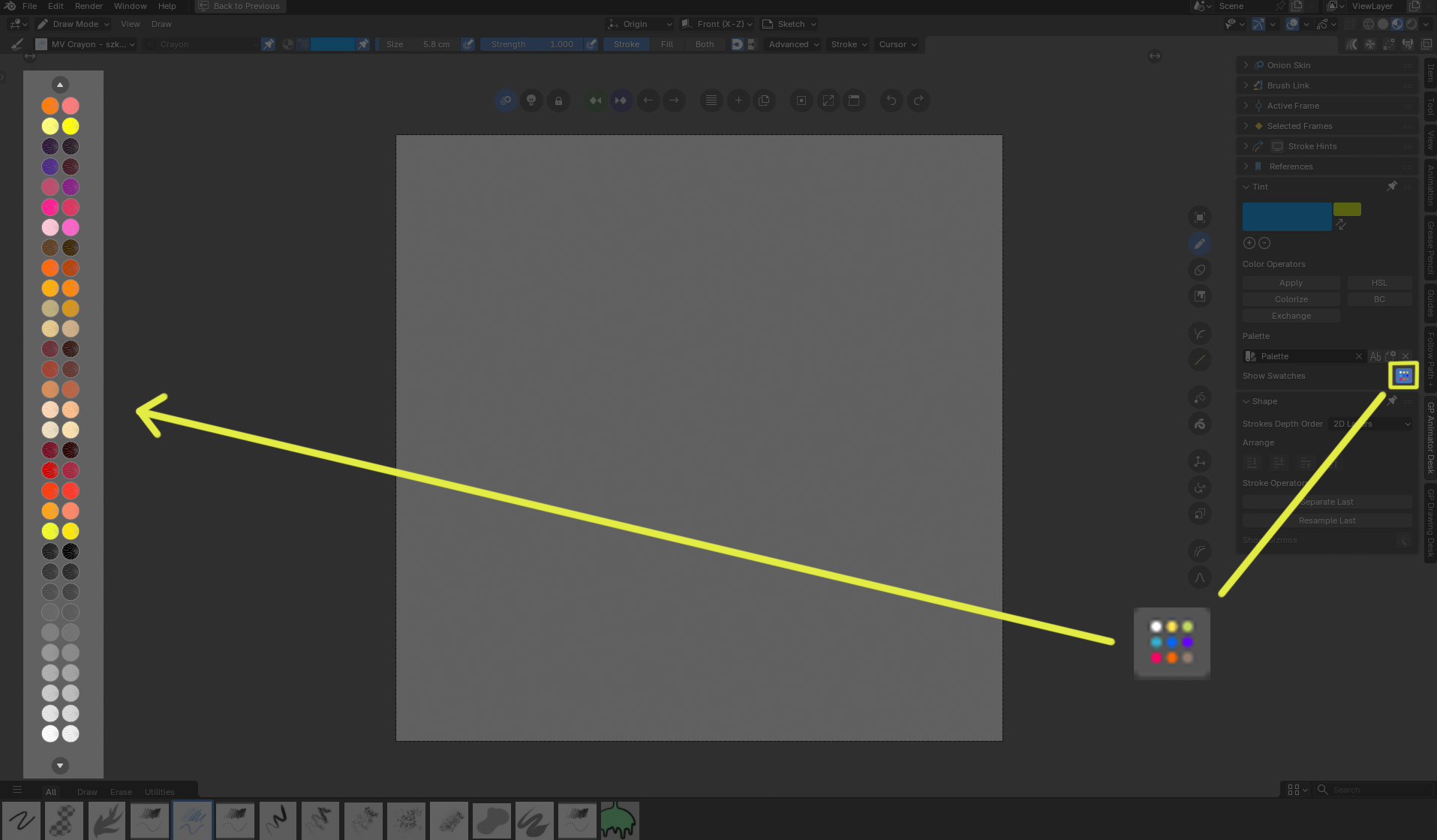

Show Swatches toggle button

With this button you can switch on/off palette swatches in 3d View

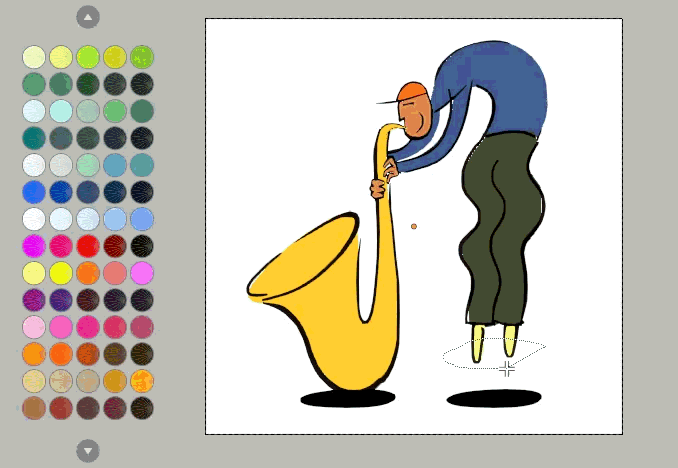

Use this swatches to change current brush color when in Paint mode or to fast change selected stroke colors when in Edit mode (with CONTROL key it changes fills, with SHIFT key it changes outlines).

Shape panel

Arrange

Arrange strokes in classic way, to change their order (works only in 2D Layers mode)

Stroke operators

Additional stroke operators, in Edit mode they works on selected strokes, in other modes works on last drawn stroke (it makes life easier when you want to change last drawn stroke without going into Edit mode)

Separate

Separates strokes into new Grease Pencil object. Works better than default Separate operator.

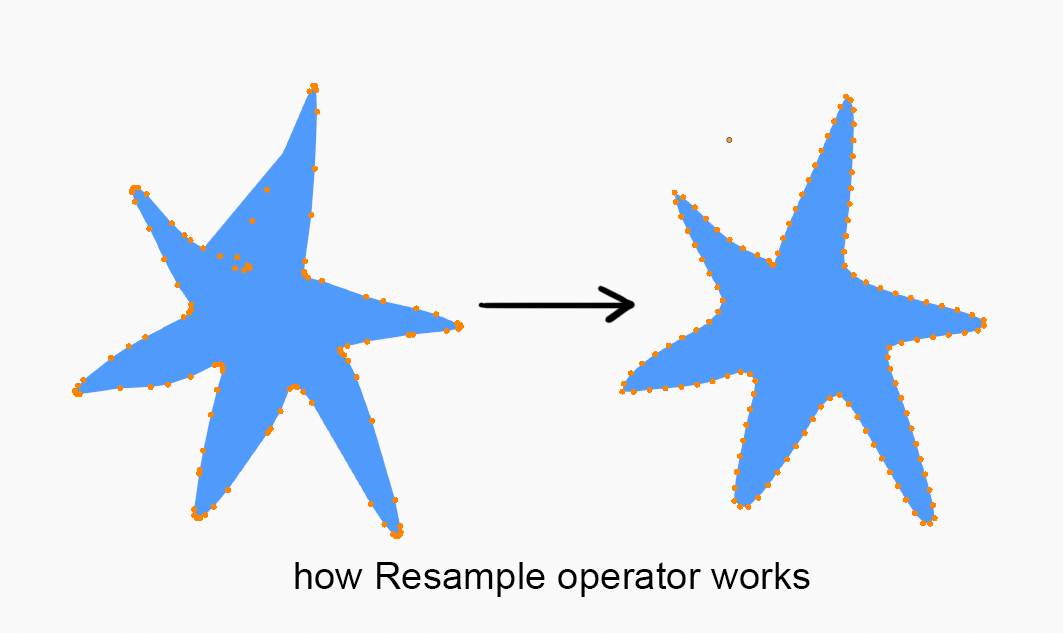

Resample

Makes Simplify and Smooth operator on stroke to make it more regular, with option to close stroke. This prepres stroke for better sculpting.

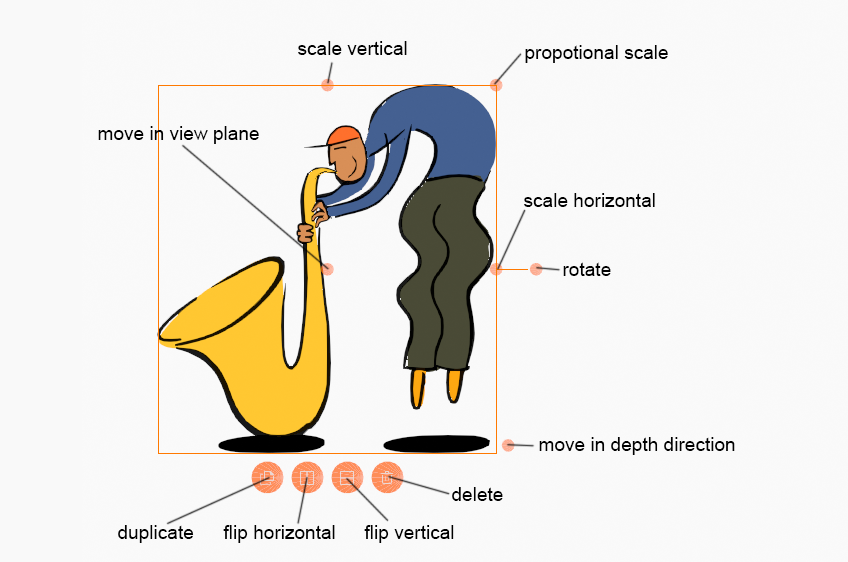

Show Gizmos buttons

Transform

Toggles classic 2D transform gizmos drawn around selection

Operation

Toggles Operation gizmos (Duplicate, Flip Horizontal, Flop Vertical, Delete buttons)

Strokes

Toggles native strokes viibility in Edit and Sculpt mode

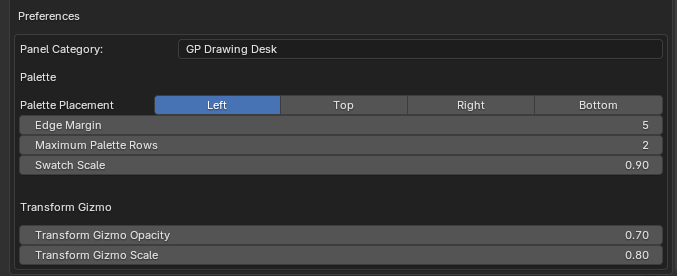

Preferences
